Solution Brief
The JWJ-2 Overhead Contact Line Electrical Connection Clamp Status Online Monitoring System is a device specifically designed for 24-hour real-time online monitoring of temperature changes in key parts of the overhead contact line and power supply and transformation equipment. When the temperature at the monitoring point exceeds the set value, it immediately alarms to prompt maintenance personnel to check and handle, reducing the occurrence of faults and ensuring the safety of train operations.
The JWJ-2 Overhead Contact Line Electrical Connection Clamp Status Online Monitoring System achieves uninterrupted 24 - hour online monitoring of all monitoring points. The monitoring data is transmitted over long distances and uploaded automatically. With high-precision temperature measurement, the data can be viewed in various ways and can also provide early warnings. This facilitates the precise identification of fault points and guides maintenance efforts.

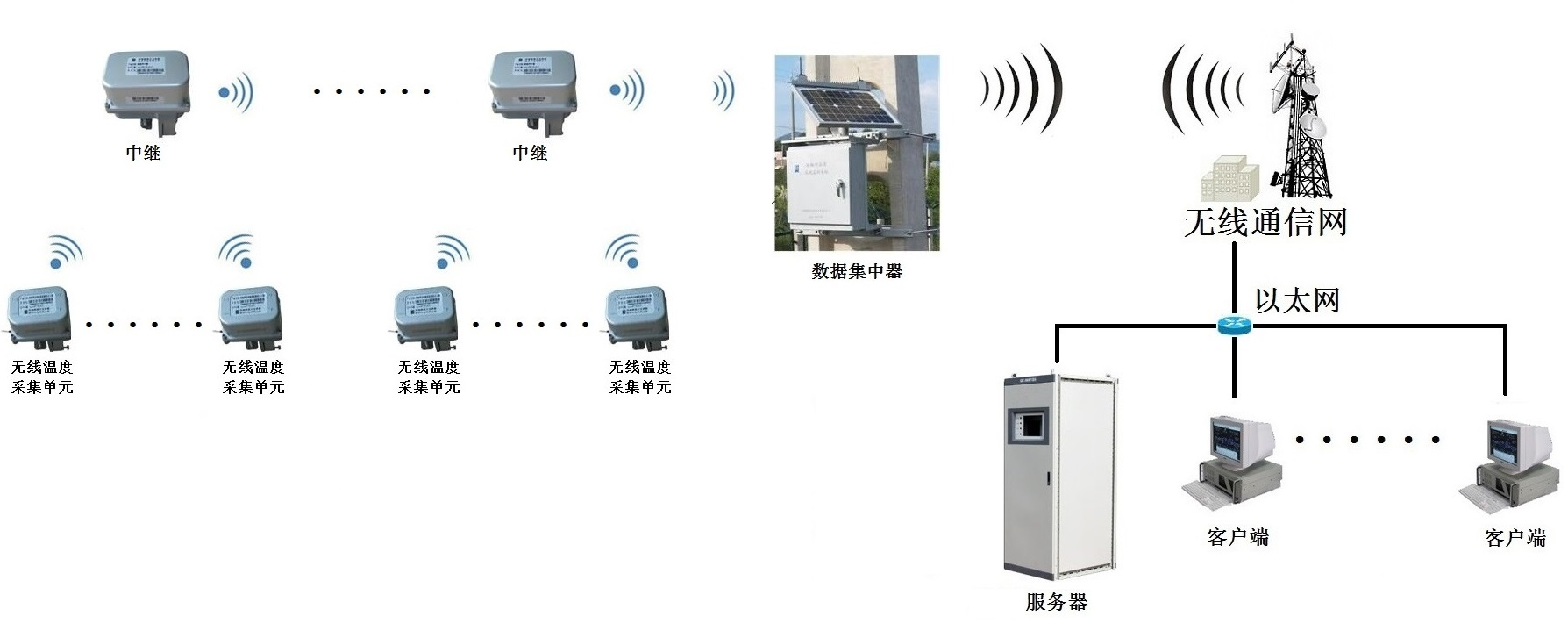

System Architecture
Application Scenarios
Collect the surface temperature of the contact wire connection clamp and the ambient temperature
Provide users with warnings based on the set temperature or temperature difference
Solution Value
-
Multi-probe Design of Acquisition Unit
-
Wireless transmission distance is long
-
Long continuous working hours
-
High Monitoring Accuracy and Wide Range
Multi-probe Design of Acquisition Unit
It can realize simultaneous temperature measurement of 2-4 points
Wireless transmission distance is long
Wireless communication in visible conditions can reach 1000 meters
Long continuous working hours
The temperature collection unit uses patented technology to realize on-site power collection and lithium battery power supply, which can work continuously for more than 10 years
High Monitoring Accuracy and Wide Range
The measurement temperature range of the acquisition unit is-40℃ ~ 200℃, and the temperature range of-40℃ ~ 100℃ is not more than ±0.5℃
