Solution Brief

The integrated public-private railway emergency communication system is built on the Feihong

converged dispatch platform, integrating GIS, BeiDou space-time positioning, emergency

big-data, and other ICT technologies. Tailored to local conditions, it enables rapid access

via 4G/5G public networks, high-throughput broadband satellites, ad-hoc networks, and

railway private networks. On-site lightweight emergency gear can be deployed immediately and

used on demand, creating an agile, efficient, and extreme-communication emergency system that

covers air, space, and ground. It delivers anytime, anywhere visibility, command, and

decision-making for emergency response agencies at all levels.

Compliant with the China State Railway Group document Tie-Gong-Dian No. 157 “General

Technical Requirements for Railway Emergency Communication Systems Based on Public-Private

Network Convergence,” the system satisfies three-tier (State Railway Group, railway bureau,

and station/depot) coordinated emergency command and communication assurance. It also offers

full-process electronic, digital, and intelligent capabilities for prevention before,

response during, and review after an emergency.

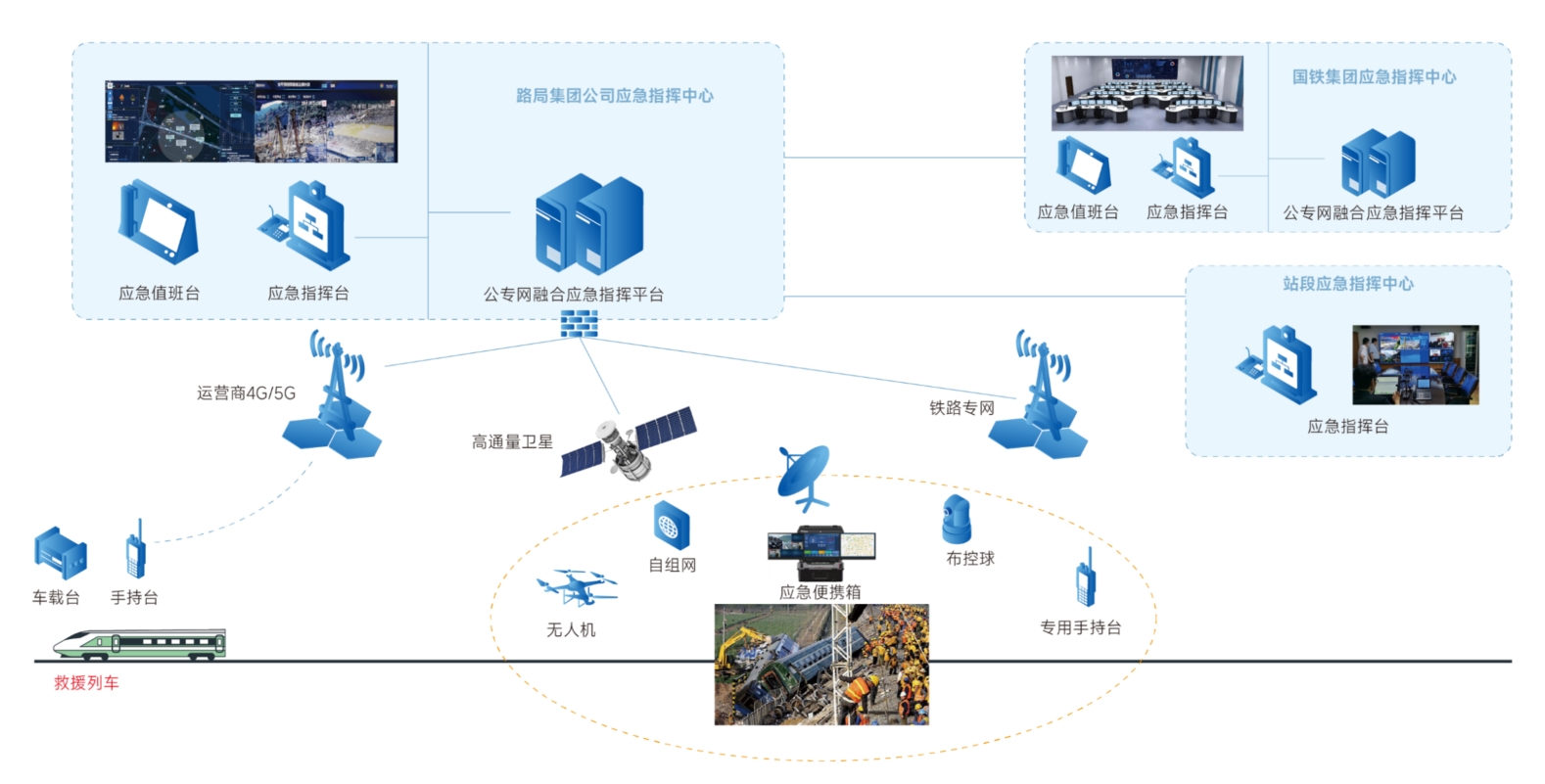

System Architecture

Pain Points

Traditional emergency communication systems have limited technical means, making it difficult to respond quickly to the increasing number of emergency scenarios, especially in special environments such as mountains, valleys, and tunnels.

Traditional emergency equipment is heavy and bulky, requiring multiple people to operate. There is a need for lightweight, ready-to-use on-site emergency gear to improve the efficiency and quality of grassroots emergency communication work.

With the rapid growth of railway operating mileage and the diverse coverage areas, there is a greater need for flexible application of various technologies in extreme situations such as no roads, no network, and no power.

Application Scenarios

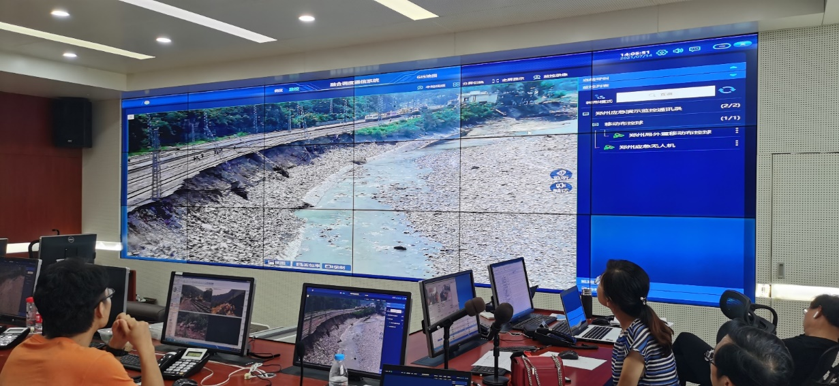

Emergency Command Center

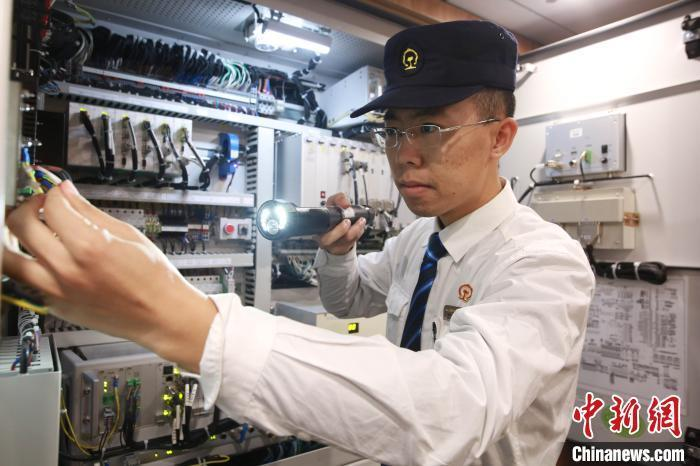

Dispatching Center

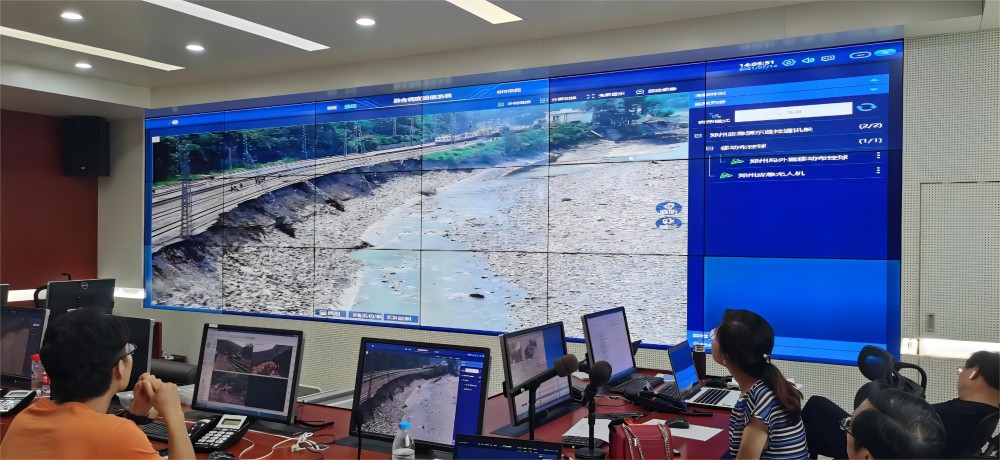

Emergency Duty Room

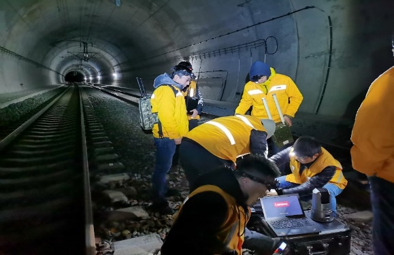

Tunnel Rescue

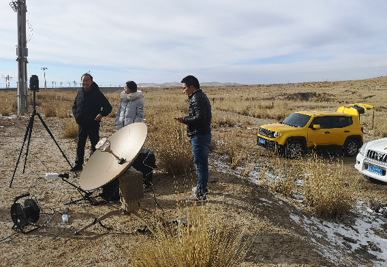

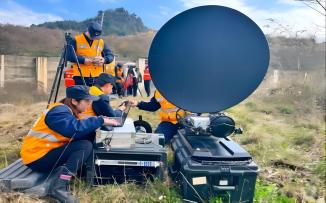

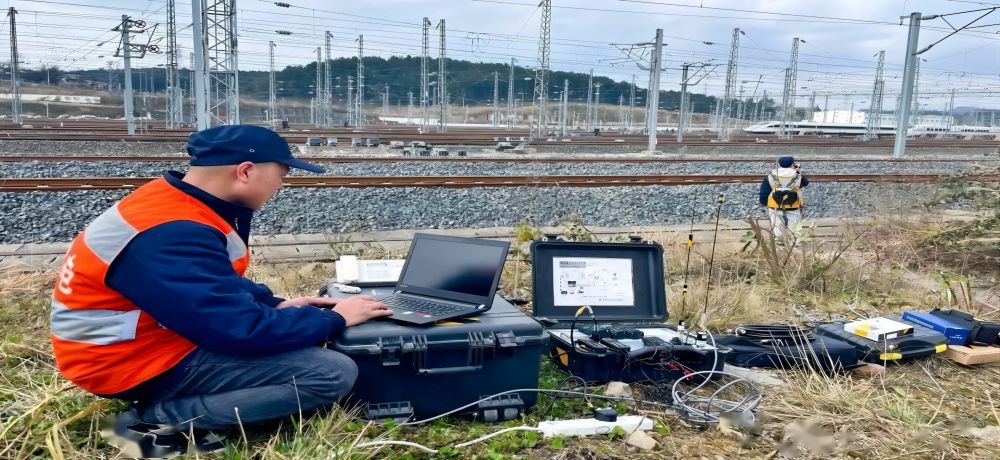

Emergency Site

Solution Value

Rapid deployment, Instant upload
Adapted to local conditions, diverse terminals
Unified platform, Multi-network convergence
Full-area coverage, broadband transmission
Precise positioning, Mobile command

Rapid deployment, Instant upload

Field equipment is built with a lightweight, one-button-start design that slashes deployment time; no pre-configuration is needed to instantly establish a three-channel emergency link for voice, video, and data.

Adapted to local conditions, diverse terminals

Integrates a triple-mode terminal for satellite, public network, and ad-hoc communications, allowing flexible switching in complex environments such as railway tunnels or mountainous areas and adapting to any geographic condition.

Unified platform, Multi-network convergence

Enables rapid, seamless handover between 4G/5G public networks and broadband satellite links; interconnects with PSTN, video surveillance, video conferencing, and other service systems to share information and resources.

Full-area coverage, broadband transmission

Integrates satellite, public, and ad-hoc networks, and extends the coverage radius via relays and drones to ensure complete emergency-area coverage.

Precise positioning, Mobile command

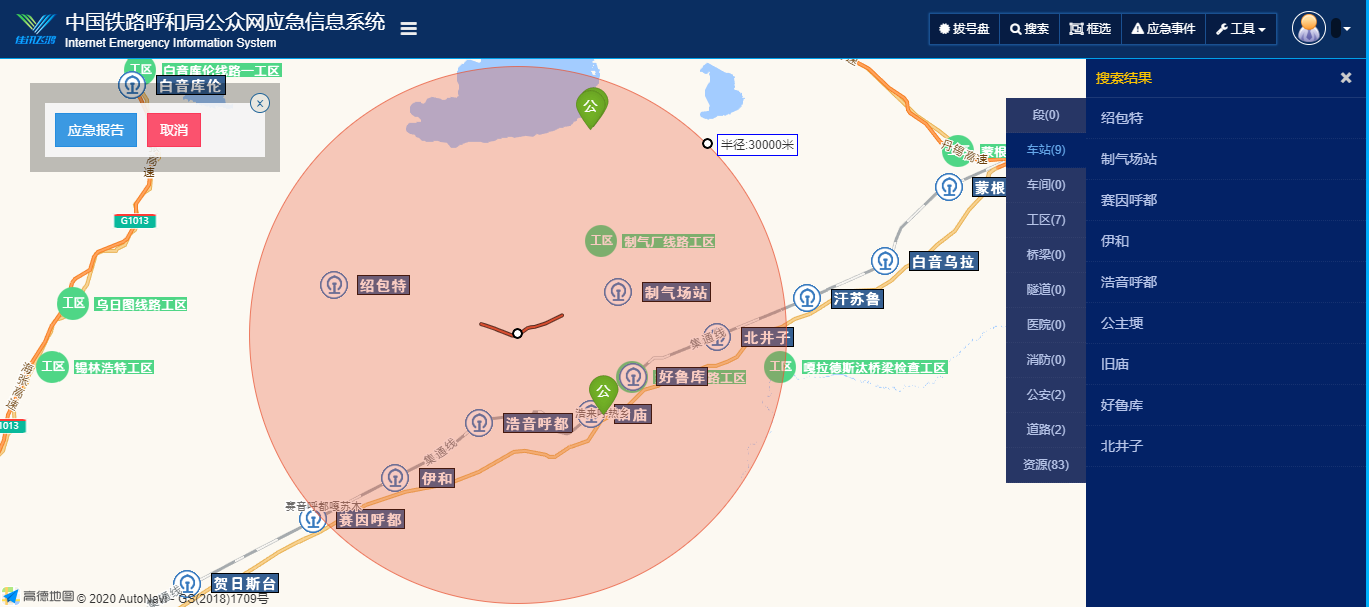

Using a BeiDou + GIS dual-positioning system, centimeter-level location of personnel, vehicles, and assets is achieved, allowing users to select any area and instantly launch cross-system video conferences or send group commands.
